MPO 12F Internal Shutter Adapters

Developed for front-of-rack usage, our award-winning design incorporates unique internal shutters that provide protection from lasers, dust and debris while protecting the ferrule. The internal shutters also allow for quick VFL detection. With an SC footprint, the size allows for quick interchange with current LC & SC adapter configurations. For organizing your panels, we offer a variety of housing colors.


  • Simplex and Duplex style
  • Interchangeable with LC & SC configurations
  • Internal shutters provide quick VFL detection


Fiber Type: 12 Fibers, 24 Fibers

Application Mode: SM, MM, Low Loss SM, Low Loss MM, APC

Insertion Loss: SL 0.35dB/SM 0.7dB/ML 0.35dB/MM 0.6dB

Return Loss: SL 60dB (8°polish)/SM 60dB (8°polish)/ ML 20dB (flat polish/MM 20dB (flat polish)

– IEC-61754-7-MPO-1996 and TIA-604-5 Type MPO

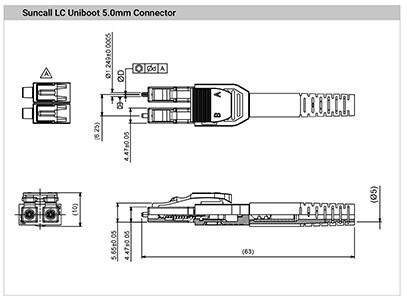

Technical Drawing

You must be a registered user to view this tab. Register
