MPO Precision, Performance and Versatility in the Most Demanding Environments
Suncall’s MPO Series will keep your connections strong and reliable. We offer a broad selection of MPO Products available in 12F, 16F, and 24F models. Our award-winning internal shutter adapters with an SC footprint are currently available in 12F and 16F models. They are available in multiple sizes: simplex, duplex, 4-port and 6-port clusters. The adapters pair nicely with our newest connectors, the MPO Pull Boot Connectors. Together they are ready for high-density panels.

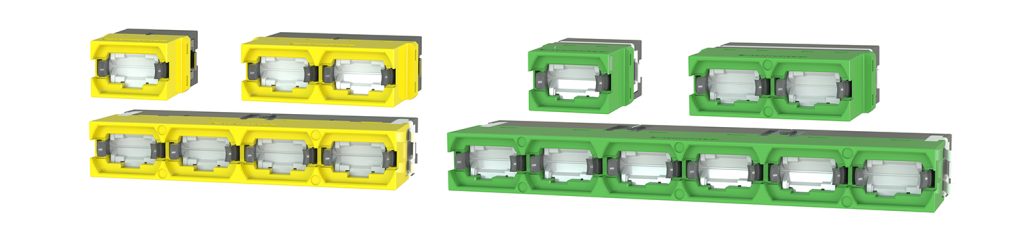

MPO Internal Shutter Adapters – 12F and 16F
Suncall’s MPO Internal Shutter Adapters are available in various sizes and key positions – from simplex to 6-port clusters, available in 12F and 16F models. Discover how our MPO Internal Shutter Adapters can improve your connections.
Our Internal Shutter Adapters are available in the following sizes:
- Simplex & Duplex (SC footprint)
- 4-Port Cluster (interchanges with our LC 8-port)
- 6-Port Cluster (interchanges with our LC 12-port)
Benefits and Features of Internal Shutters:
- Designed for front-of-rack usage
- Quick VFL detection
- Reduces waste (no dust caps required on OTW, Outside The Wall, side)
- Protects from laser exposure, dust & debris
- Uniquely designed shutters never touch the ferrule
MPO Pull Boot Connectors – 12F, 16F and 24F
Our line of MPO Pull Boot Connectors has expanded to include the new Short Pull Boot – available in 12F, 16F and the new 24F models. The reinforced boot has a push-pull design for easy insertion and removal in high density panels, which eliminates the need for additional tools/ tabs.
Technical Specs:
- Application Mode: SM, MM, SM Low Loss, MM Low Loss
- Insertion Loss: SL 0.35dB/SM 0.7dB/ML 0.35dB/MM 0.6dB
- Return Loss: SL 60dB (8°polish)/SM 60dB (8°polish)/ ML 20dB (flat polish/MM 20dB (flat polish)
- IEC-61754-7 and TIA-604-5-D
Suncall MPO Solutions
Getting More Fibers To Your Panels
Just Got Easier
Our MPO Internal Shutter Adapter Series were designed with the same footprint as our LC Internal Shutter Slimpack Adapters – making them interchangeable without modifying panel cutouts.
